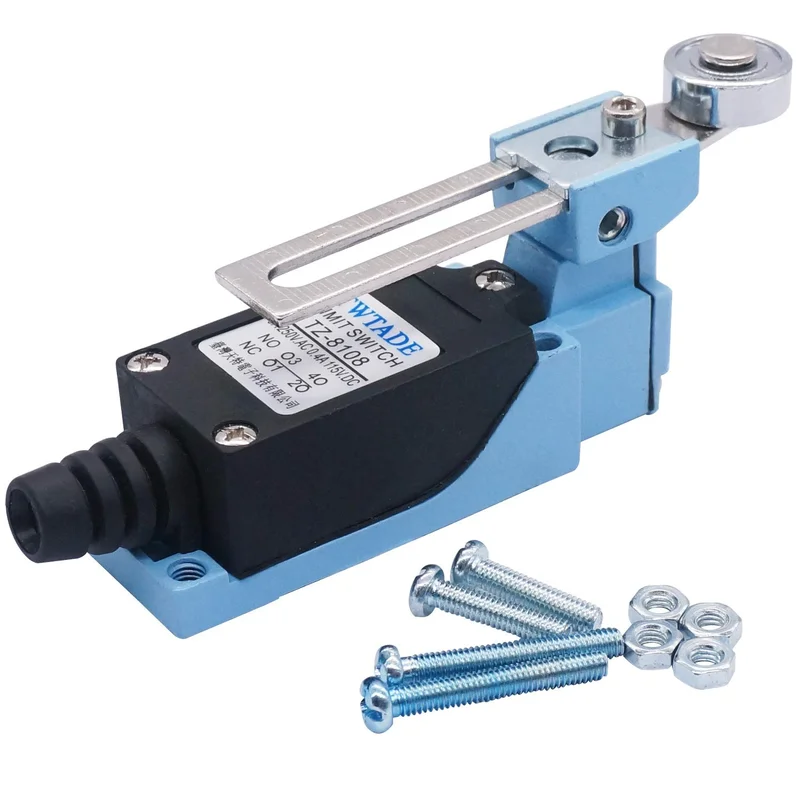

TWTADE/TZ-8108 Adjustable Roller Lever Arm Limit Switch NC-NO CNC Mill Router SPDT Momentary Limit Switch for CNC Mill Plasma TZ-8108-Quality Guarantee-Fast Shipping

Description

Product Name : Limit Switch;Model No. : TZ-8108;Actuator Action : Momentary;Actuator Type : Rotary Adjustable Lever Arm with Roller

contact configuration :1No,1nc(dpdt); rated Voltage : AC 250V 5A, dc 115V 0.4A

Roller Dimension : 18x 6mm / 0.71″ x 0.24″(D*T);Lever Arm Length : 84mm/ 3.3″;Fixing Thread Diameter : 4.5mm/ 0.18″

Total Size : 124 x 29 x 48mm/ 4.9″ x 1.1″ x 1.9″(L*W*H);Mounting Size : 56 x 21mm/ 2.2″x 0.83″(L*W);Material : Rubber, Plastic & Metal

Main Color : Light Blue, Silver Tone, Black;Weight : 181g;Package Content : 1 x Limit Switch + screws
