Description
It is widely used in the air guide mechanism and shaking head mechanism of electric fans, heaters, heaters, small sun angles, various display racks, handicrafts, lighting fixtures, toys and other appliances, as well as the air guide motors of various types of air conditioners and the turntables of microwave ovens motor. Widely used in Christmas trees, rotating lights, electric tables, electric shelves, dishwashers, control appliances, etc.

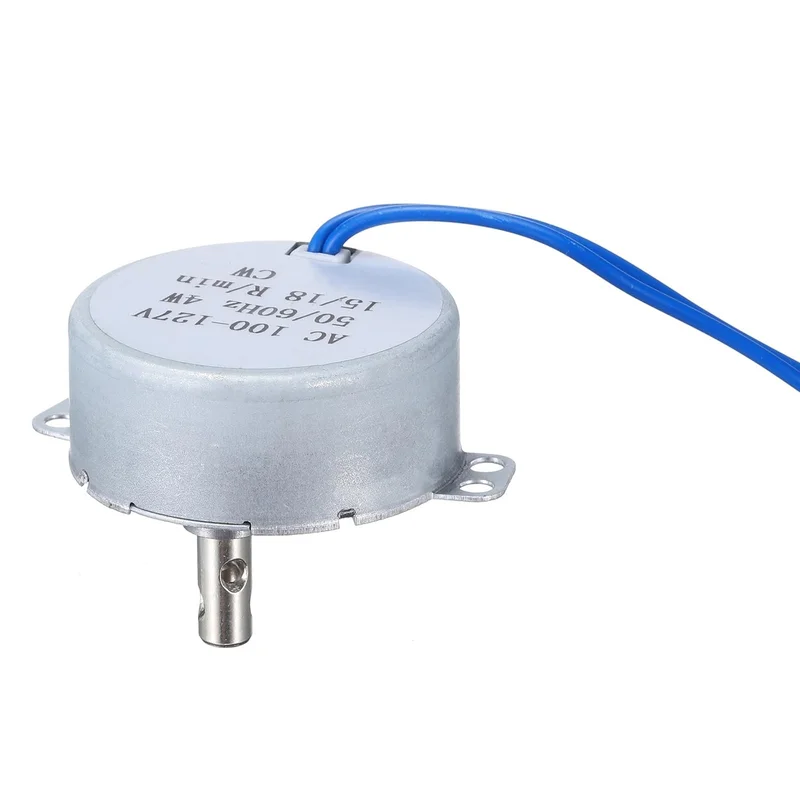

Type: Horizontal hole tapping shaft; Model: TYC-50; Voltage: AC100-127 (V); Speed: 15-18 (RPM); Frequency: 50/60Hz; Rated Power: 4W; Reduction Ratio: ; Direction: CW(Forward rotation-CW clockwise); Shaft Screw Thread Inner Diameter: M4*8mm (Dia*L); Shaft Diameter: 7mm/0.28-inch; Shaft Length: 15mm/0.59-inch; Hole Diameter: 3mm/0.12-inch; Hole Distance: 8.5mm/0.33-inch; In the package of: 1Pcs x Synchronous Motor
Low power consumption, large torque, low noise, small size, light weight and easy to use. At the rated frequency, the motor speed is not affected by the voltage and remains constant. The reduction gear uses a metal/plastic combination to ensure the gears work continuously and quietly.
Connect the motor to an appropriate power source, ensuring compliance with the motor’s rated voltage and frequency requirements. Install the plastic gear motor in the desired location. Press the start button or switch to start the motor.
Please select the speed and power you need and avoid putting fingers or other objects close to the running motor parts.
